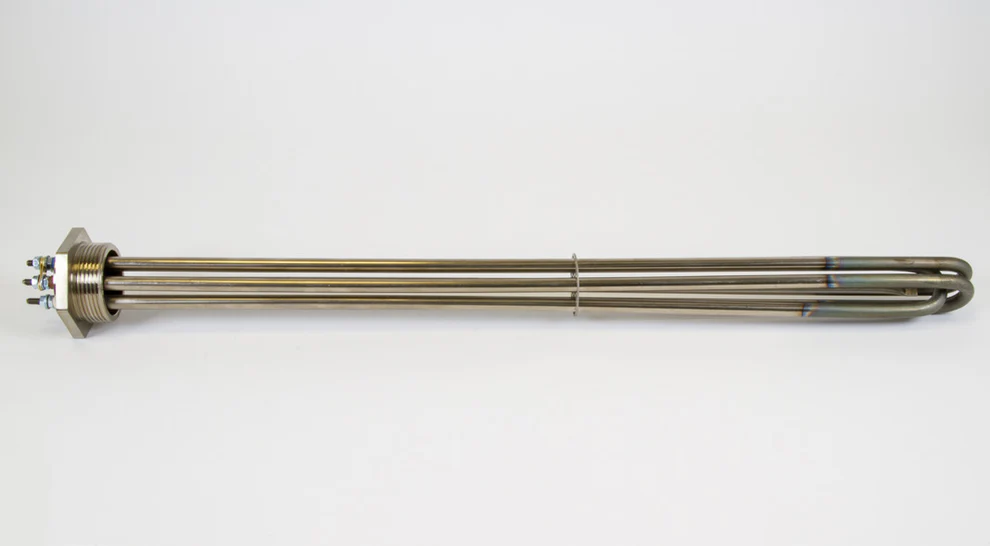

DTV45I
DTV45I
With the DTV45I we developed a standard set of immersion heaters for the heating of water with additives.
On demand, adjustments can be made if the requested quantity is justified.
We can tailor make the desired solution.
– Voltage: 230/400V
– Output: 3 – 15 kW
– Watt density: 12,5 W/cm2
– SS 304 screw plug M45
– Heating elements: Incoloy 825 – Ø 8,5 mm
– TIG welding of elements
– Pocket for thermostat: Ø 8 x 0,5 mm
– Pickling & passivation
– Wide range of outputs and lengths available
– Connection box DKBA (small or large) is optional
screw plug immersion heater for water with additives
The screw plug immersion heater for water with additives is designed for reliable and efficient heating in systems where treated or chemically enhanced water is used. It ensures stable temperatures in tanks, vessels, and industrial installations, supporting consistent performance and safe operation.
robust construction for additive-rich environments
This immersion heater is equipped with a durable SS304 screw plug (M45) and high-quality Incoloy 825 heating elements (Ø 8.5 mm). As a result, it offers excellent resistance to corrosion and chemical impact. In addition, TIG welding of the elements enhances mechanical strength and durability. The 12.5 W/cm² watt density enables efficient and controlled heat transfer, even in demanding conditions.
flexible configuration and custom solutions
The heater is available in 230V and 400V versions, with outputs ranging from 3 to 15 kW. Furthermore, the integrated thermostat pocket (Ø 8 x 0.5 mm) allows accurate temperature monitoring and control. Because applications with additives can vary significantly, a wide range of lengths and capacities is available. Custom-built solutions can also be developed on request.
practical design and installation benefits
The compact design ensures easy installation in both new and existing systems. Moreover, the pickling and passivation process improves surface quality and extends the lifespan of the heater. An optional DKBA connection box (small or large) is available, providing a safe and convenient electrical connection.
applications in treated water systems
This industrial heating solution is ideal for use in tanks, machinery, and process systems involving water with additives. It delivers uniform heat distribution, helping to reduce maintenance requirements and prevent temperature fluctuations. As a result, it supports efficient operation and long-term reliability in demanding environments.
This is available for direct purchase via our webshop
