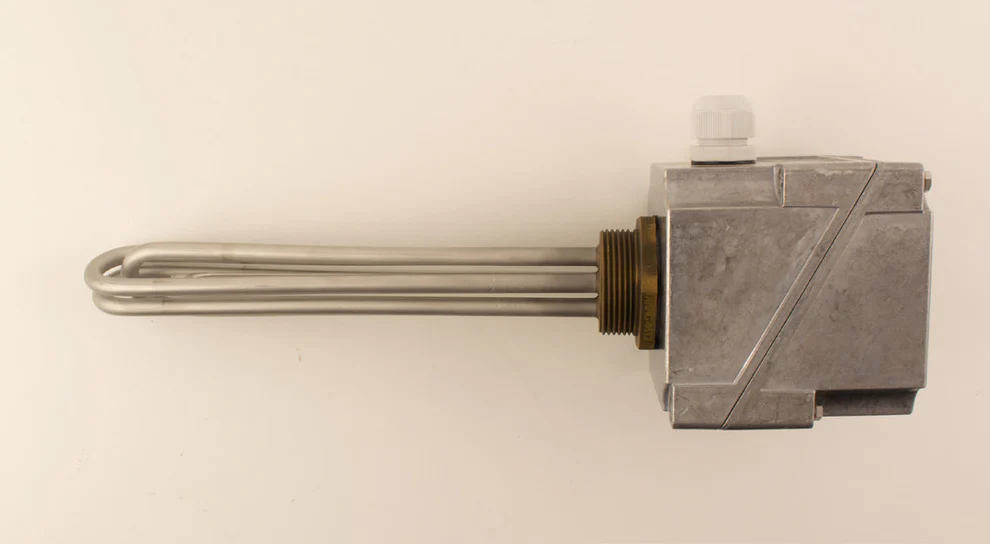

DTV45EI
DTV45EI
With the DTV45EI we developed a standard set ofimmersion heaters for the heating of water.
On demand, adjustments can be made if therequested quantity is justified.
We can tailor make the desired solution.
– Voltage: 230/400V
– Output: 1 – 12 kW
– Watt density: 10 W/cm2
– Brass screw plug M45
– Heating elements: SS 316L – Ø 8,5 mm
– Brazing of elements
– Pocket for thermostat: Ø 8 x 0,5 mm
– Pickling & passivation
– Wide range of outputs and lengths available
– Connection box DKBA (small or large) is optional
screw plug immersion heater for water
The screw plug immersion heater for water delivers reliable and efficient heating for industrial and commercial systems. It maintains stable temperatures in tanks, vessels, and process installations, ensuring consistent performance and safe operation from the start.
durable construction for demanding environments
This immersion heater features a robust brass screw plug (M45) combined with high-quality SS316L heating elements. As a result, it resists corrosion and performs reliably in challenging water environments. Moreover, the brazed elements increase mechanical strength, while the 10 W/cm² watt density ensures fast and controlled heat transfer.
flexible configuration and control options
You can select this heater in 230V or 400V configurations, with outputs ranging from 1 to 12 kW. In addition, the integrated thermostat pocket (Ø 8 x 0.5 mm) allows precise temperature monitoring and control. Because applications vary, multiple lengths and capacities are available. Custom-made solutions can also be provided if needed.
easy installation and practical features
The compact design simplifies installation in both new and existing systems. Furthermore, the pickling and passivation process improves surface quality and extends the product lifespan. You can also choose an optional DKBA connection box (small or large), making electrical connections safer and more convenient.
applications in water heating systems
This industrial heater performs well in tanks, machinery, and process systems. It distributes heat evenly, reducing maintenance needs and preventing temperature fluctuations. As a result, it supports continuous operation and minimizes downtime, offering a durable and cost-effective heating solution.
This is available for direct purchase via our webshop
